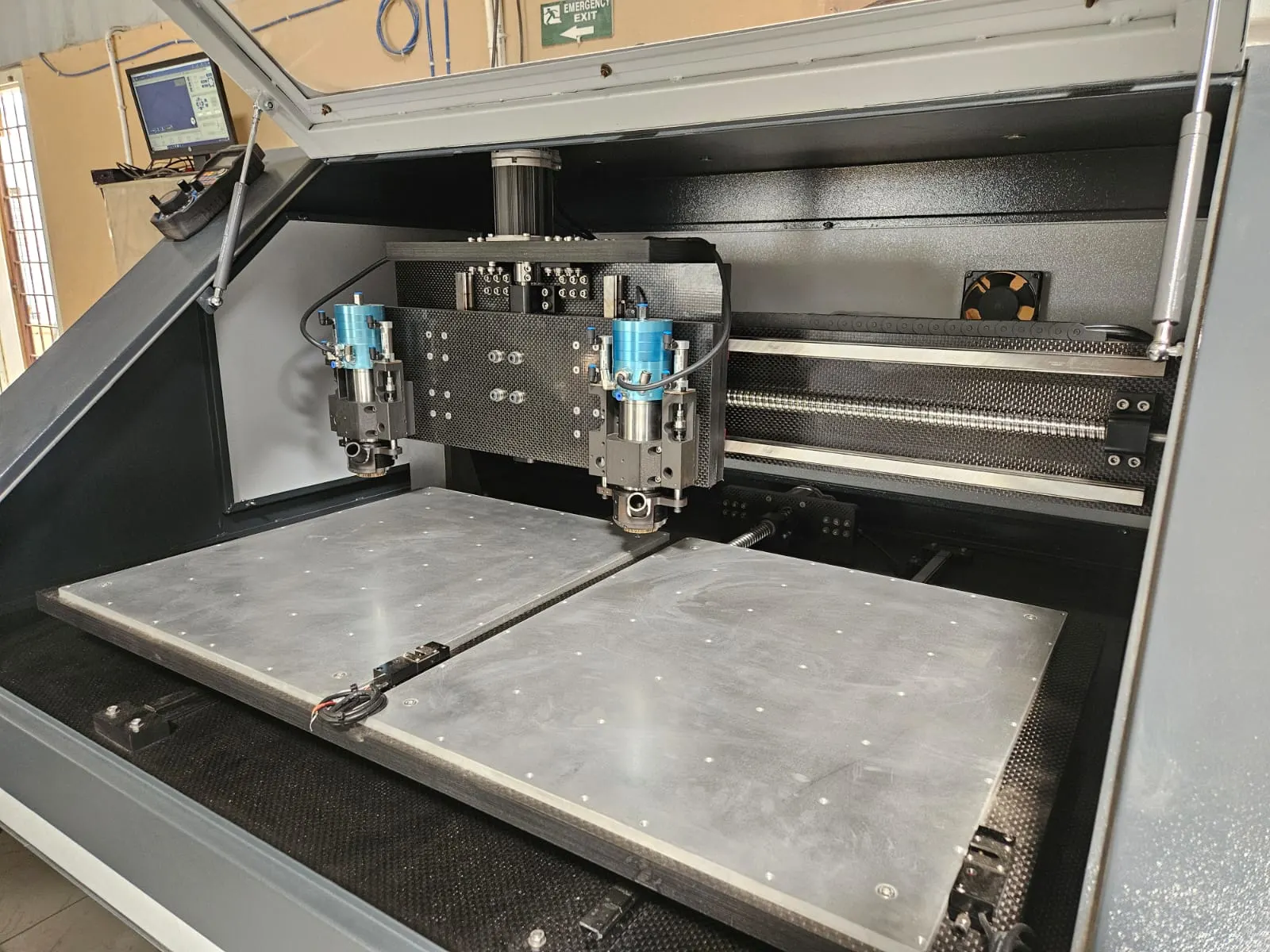

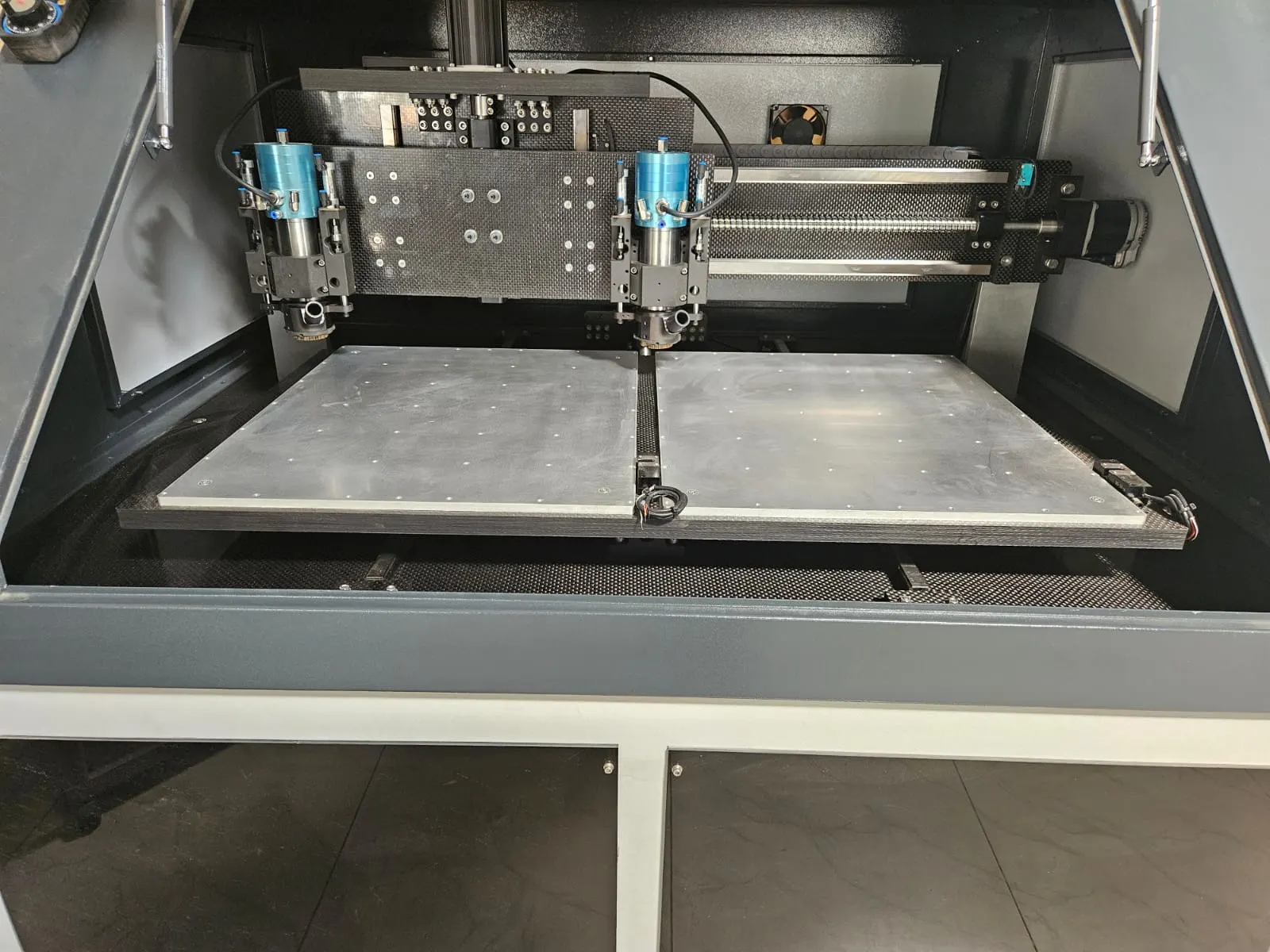

PCB precision pro - Double spindle
Engineered for high-volume PCB manufacturing, this PCB Precision Pro machine uses a dual-spindle Drill/Route system for precise drilling and routing. Perfect for industrial-scale, high-accuracy PCB production.
Key Features:

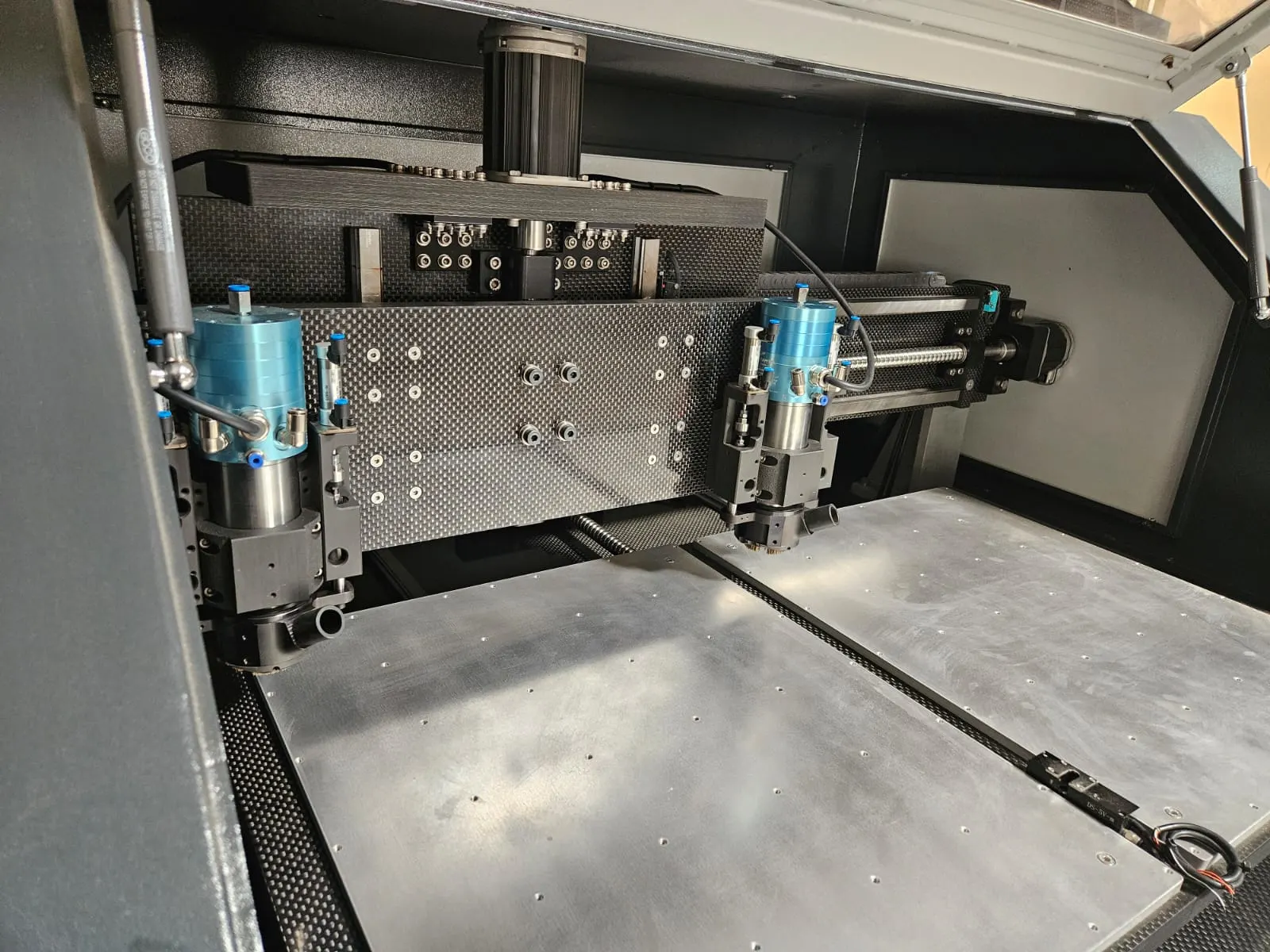

- Dual spindle architecture
- Pneumatic tool change (PTC)
- Servo motors with precision ball screws
- Pressure foot vacuum system
- Included machine enclosure
Working Area:500mm x 600mm (each bed)
Spindle Power:1.5 KW / 2 HP to 2.6 KW / 3.5 HP (depending on model)
Max Travel Speed:4 Meters/Minute
Tool Change:Pneumatic Tool Change (PTC)
Repeat Positioning Accuracy:≤50 Microns
Spindle Runout:Less than 2 Microns (PRO DUO), less than 1 Micron (ULTIMA2)
Supported Files:GCODE, MCODE, Excellon, GERBER
